SIGNAL SOURCE

The signal source of the DistriNET distributed system: either a factory-integrated, ready-to-run base station rack, or the MARK1000 MAX smart digital repeater specified into a cabinet of your own.

Integrated base station MARK1000 MAX repeater

01 · INTEGRATED BASE STATION

Integrated base station

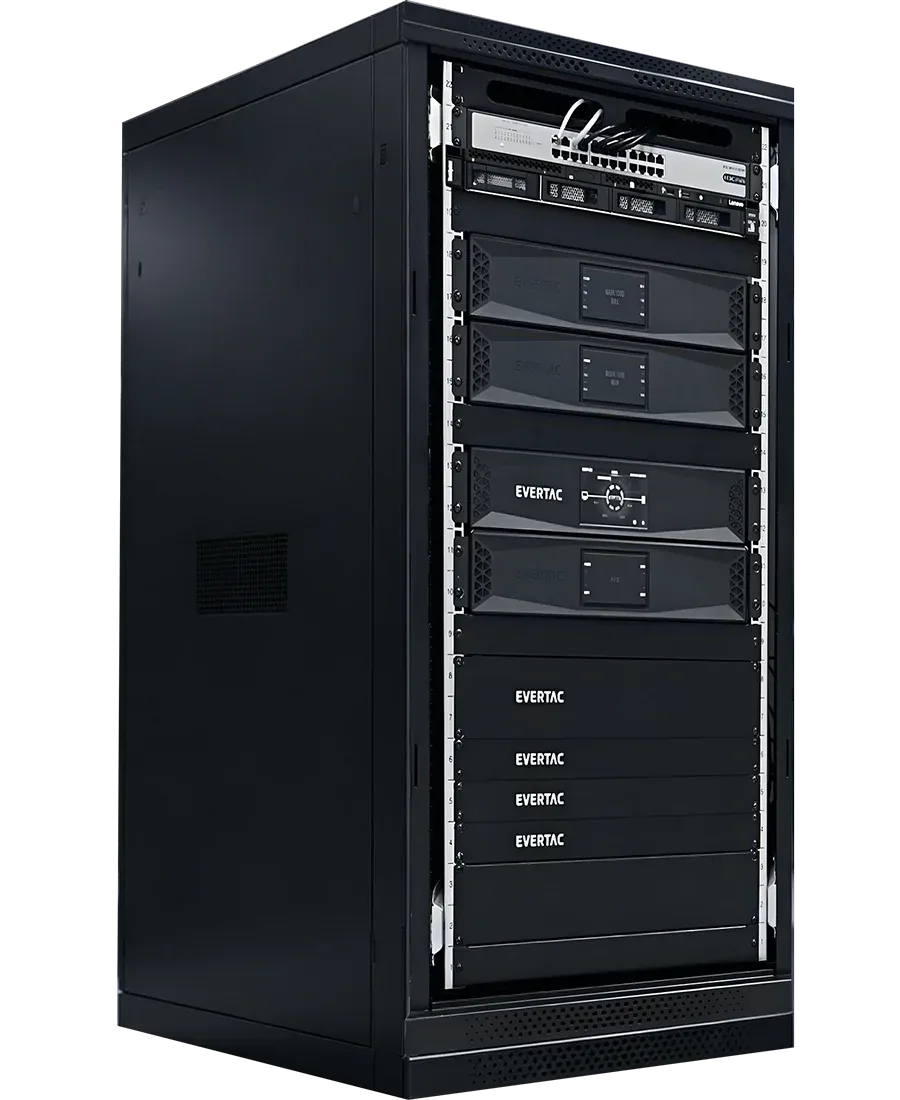

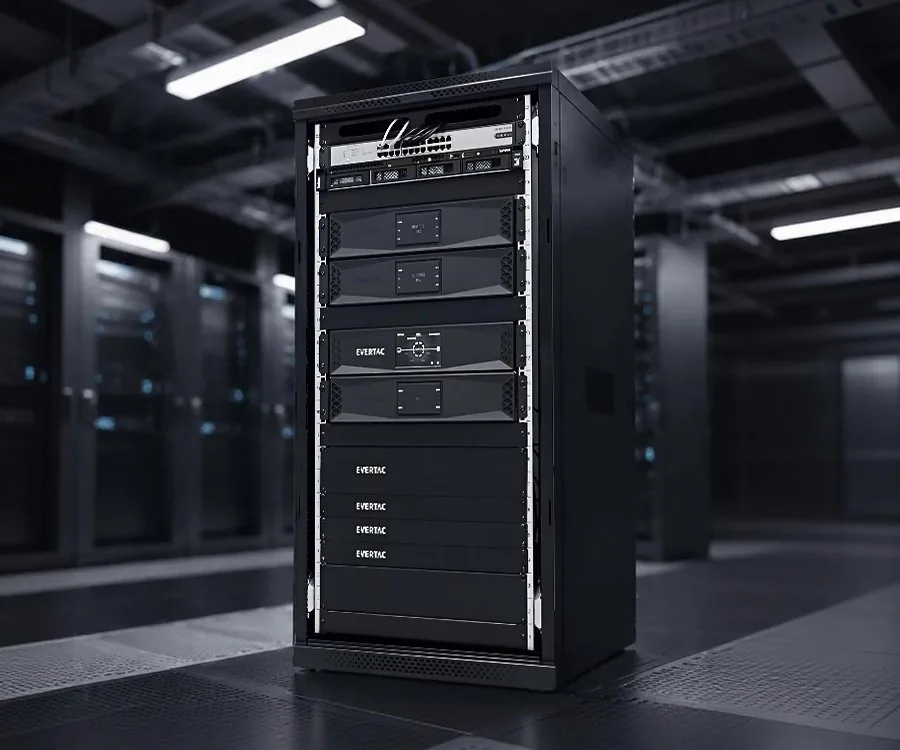

A system built to a standard design: signal source, combining platform, optical master unit and the patch panels, switches and servers it needs, integrated into one cabinet in the factory, pre-wired and pre-commissioned — lifted into place on arrival, live when it is powered up.

MARK1000 repeater

Voice and data switching core

Multi-channel combiner

Consolidates base station signals

Splitter matrix

Balances uplink and downlink

Optical master unit

Fibre distribution interface

Patch panel · switch

Cabling and network ready

Server (NetFlex)

Platform and data services

Factory integration: the whole cabinet is assembled, wired and commissioned before shipping, cutting site work and site risk substantially

Standard design: pre-configured to the DistriNET reference architecture, so optical remote units connect and run

One cabinet, one decision: communications, power, cabling, network and the platform server are planned together, so footprint and cooling are settled in one pass

Request a rack configuration

02 · SMART DIGITAL REPEATER

Smart digital repeater

MARK1000 MAX

The Mark1000 series digital conventional repeater adds data handling and intelligent control to ordinary conventional communication, strengthening both operation and maintenance in a smart building. It provides standard DMR dual-slot communication and integrates closely with the DistriNET distributed system; intelligent management means non-specialist staff can manage the equipment effectively in real time.

New industrial housing design and build quality

Fast connection into a site-wide distributed system

Standard data protocol for more stable access

DMR compliant, dual time-slot communication

Voice and data communication supported

Remote monitoring with cloud platform management

Channels

≤-120 dBm

Sensitivity (5% BER)

137–470

Supported bands (MHz)

2 slots

DMR dual slot per repeater

Request datasheet

How it works

Standard digital DMR channels carry the exchange of voice and data between radio users. Each transmit-and-receive frequency pair provides two digital time slots, and each slot serves one talk group — more talk groups are supported by adding repeaters. The equipment supports background data collection and analysis together with full condition monitoring, so it can be managed remotely from the cloud platform.

Full specifications

Supported bands 137–174 / 350–400 / 400–470 MHz

Channel spacing 12.5 kHz / 25 kHz

Modulation 4FSK (12.5 kHz data 7K60FXD · data and voice 7K60FXW)

Channels 16

Carrier frequency error ≤0.5 ppm

Sensitivity ≤-120 dBm (5% BER)

Intermodulation Co-existence ≤-50 dB · co-siting ≤-70 dB

Co-channel rejection ≥-12 dB (BER <5%)

Spurious emission -36 dBm ≤1 GHz · -30 dBm >1 GHz

Impedance · connector 50 Ω · N-K · ESD protected · IP40

Dimensions · weight 490 × 435 × 90 mm · 8.7 kg · rack mounted
