Routine days are quiet.
Critical communications must hold anyway.
A data hall is silent until something goes wrong — and then the worst outcome is not being able to reach anyone. Operations run hard, the tolerance window is short, and third parties come and go daily. The real difficulty is not the equipment; it is communication between people and traceability on site.
Steel structures, shielded cabinet rooms and underground power floors leave mobile phones with no bars — and that is where operations happen.
Checkpoint rounds rely on paper forms and after-the-fact signatures. Whether a point was reached, and when, cannot be evidenced later.
Monitoring raises an anomaly, then someone phones around. Finding who is nearest and confirming where they are both cost time.
Phased campuses end up with one site and one frequency plan per building, so engineers change channels — or radios — when they cross over.
Contractors, maintenance vendors and visitors come and go constantly, with no queryable record of who was in which module and for how long.
Whether coverage equipment is healthy, or which segment has degraded, usually surfaces only when a user complains that a call will not connect.
The quieter the hall,
the deeper coverage must reach

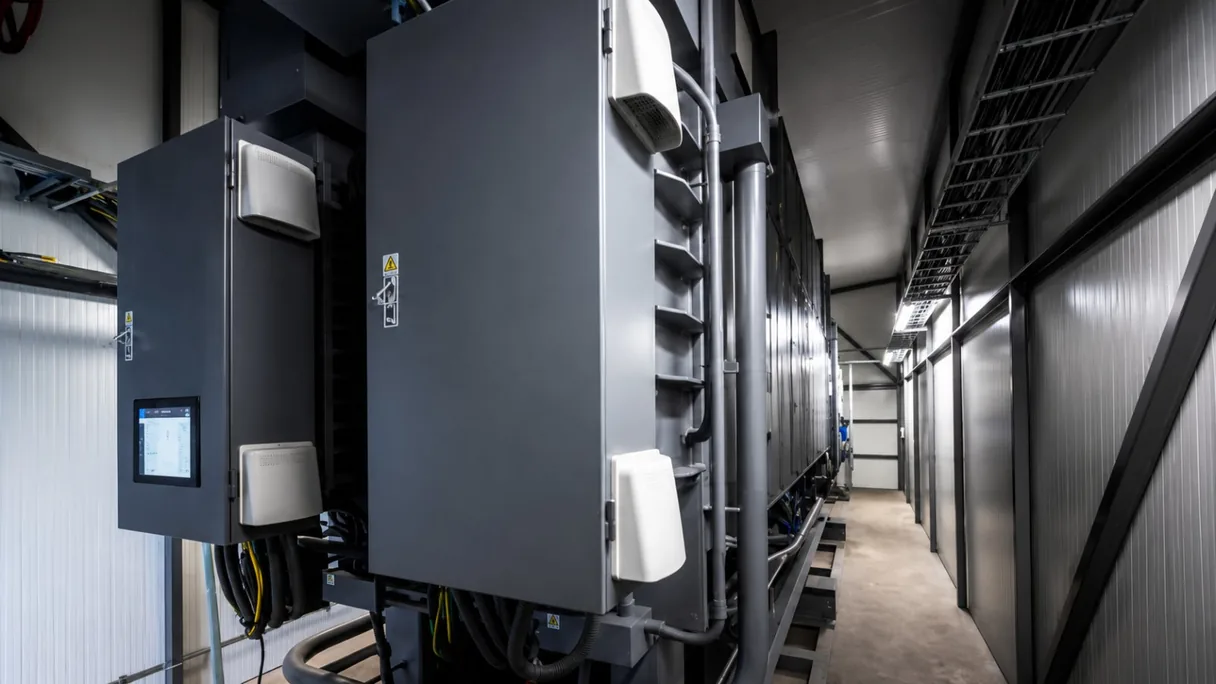

Steel-framed structures, shielded cabinet rooms, underground power floors — public networks have no bars here, and this is exactly where operations take place.
Communication security
is part of data security
Inside a facility that hosts customer data, the operational voice link must itself be a controlled channel.

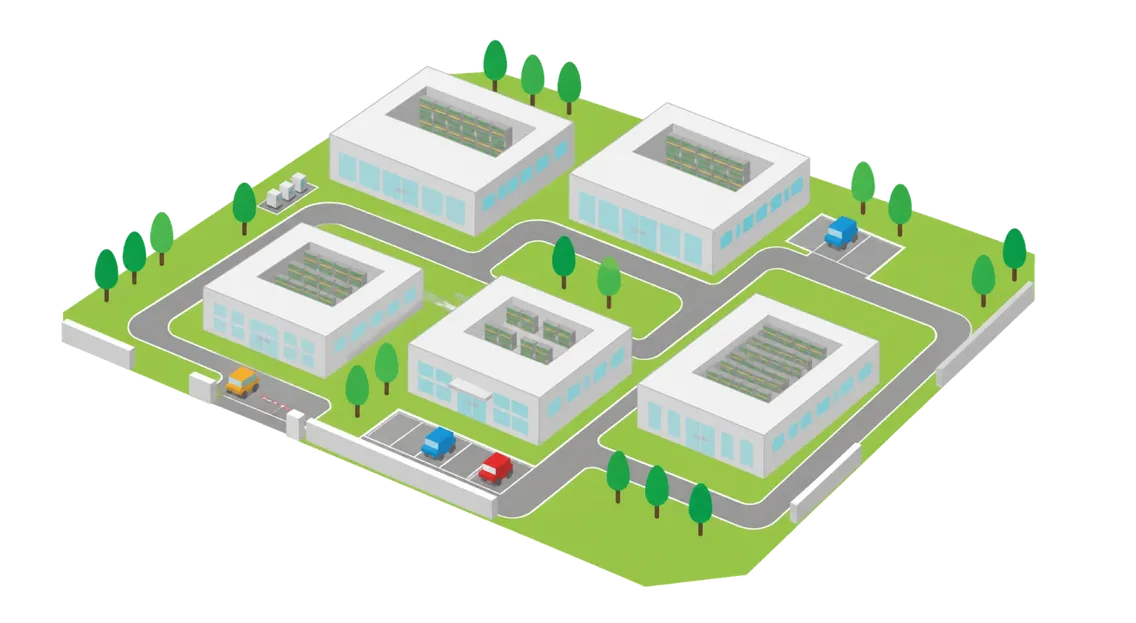

One system per building, or one system for the whole campus

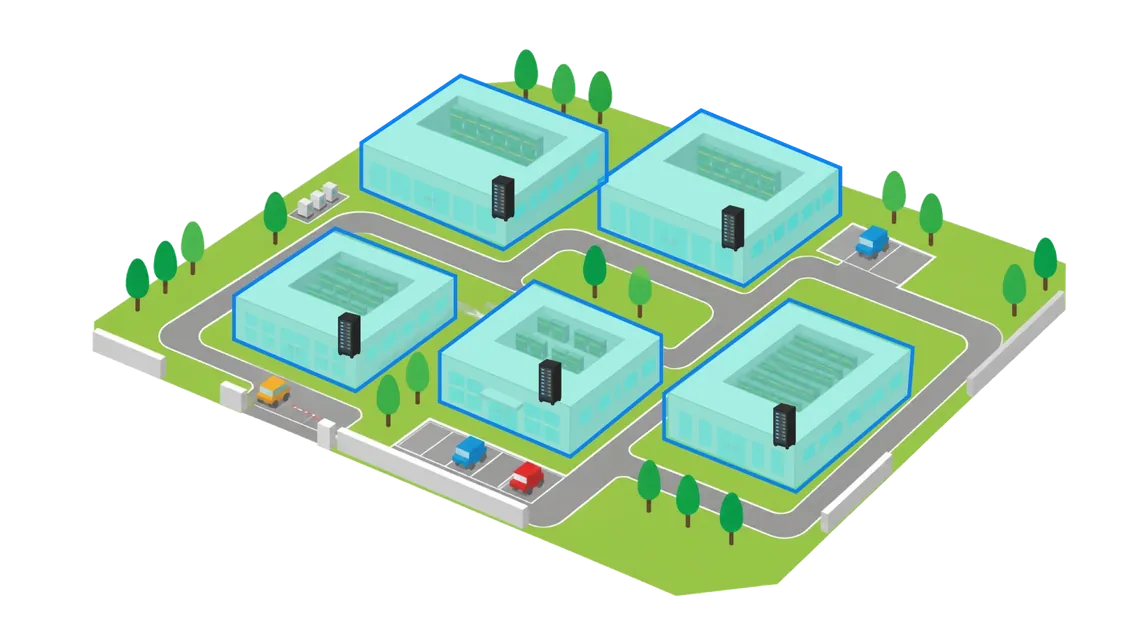

Conventional practice builds a separate base station and coverage system in every data hall. The expandable architecture centralises the base station in Building A and connects the rest over fibre — a single remote unit carries 4–12 channels, so nothing has to be built twice.
DMR + Wi-Fi + 4G converged,
so the link never drops
Data halls and power floors run on the DMR private network and in-building Wi-Fi; campus roads, yards and remote sites use 4G alongside DMR. One radio selects the network automatically as the user moves — across buildings, across zones, without a dropped call.
Campus-wide dispatch and alarm handling run on the DMR private network, independent of IT — still online when the network is down.
Cabinet rooms and power floors are backed by the private network, while office and workshop areas ride in-building Wi-Fi at zero data cost.
Open areas, yards and inter-campus dispatch use 4G alongside DMR — leaving the building never drops the call or forces a channel change.
When a contractor crew, maintenance team or special task needs its own talk group, create a virtual channel on the Wi-Fi or 4G path — no private-network spectrum consumed, no additional licence application or annual fee.
Building across borders means
compliance and local support are non-negotiable
Data center programmes usually run in several countries at once. Whether equipment can be legally deployed, whether spectrum is approved, and how fast an engineer reaches site — these decide whether the project lands on schedule.
Related Project
All case studies →
Planning a data center communications system?
From frequency planning to headroom for future phases, our engineers work with you one to one.
Data center system key facts
White space to yard
Data halls, battery rooms, generator and chiller yards
Low-power antennas
Smart antennas keep radiated power low near IT equipment
Per-antenna status
Each antenna reports health to network management
Private network
Works without relying on public mobile networks
Data center radio coverage FAQ
The questions we hear most often on selection, certification and delivery.
Didn’t find your question? Ask an engineer →The system uses many low-power antennas instead of a few high-power ones, keeping field strength near racks low while maintaining even coverage. Antenna placement is planned during design to respect equipment clearances.
Shielded halls often block public networks, and operators need push-to-talk group calls and emergency alerts that work during a utility or carrier outage. A private DMR network keeps operations, security and facility teams connected independently.
Typically data halls, battery and UPS rooms, electrical rooms, generator and chiller yards, loading docks, stairwells and the security control room.
Smart antennas and fiber repeaters report status to the network management system, so a failed antenna is located by position rather than discovered by a user.
