NEW INTELLIGENT TASK RADIO

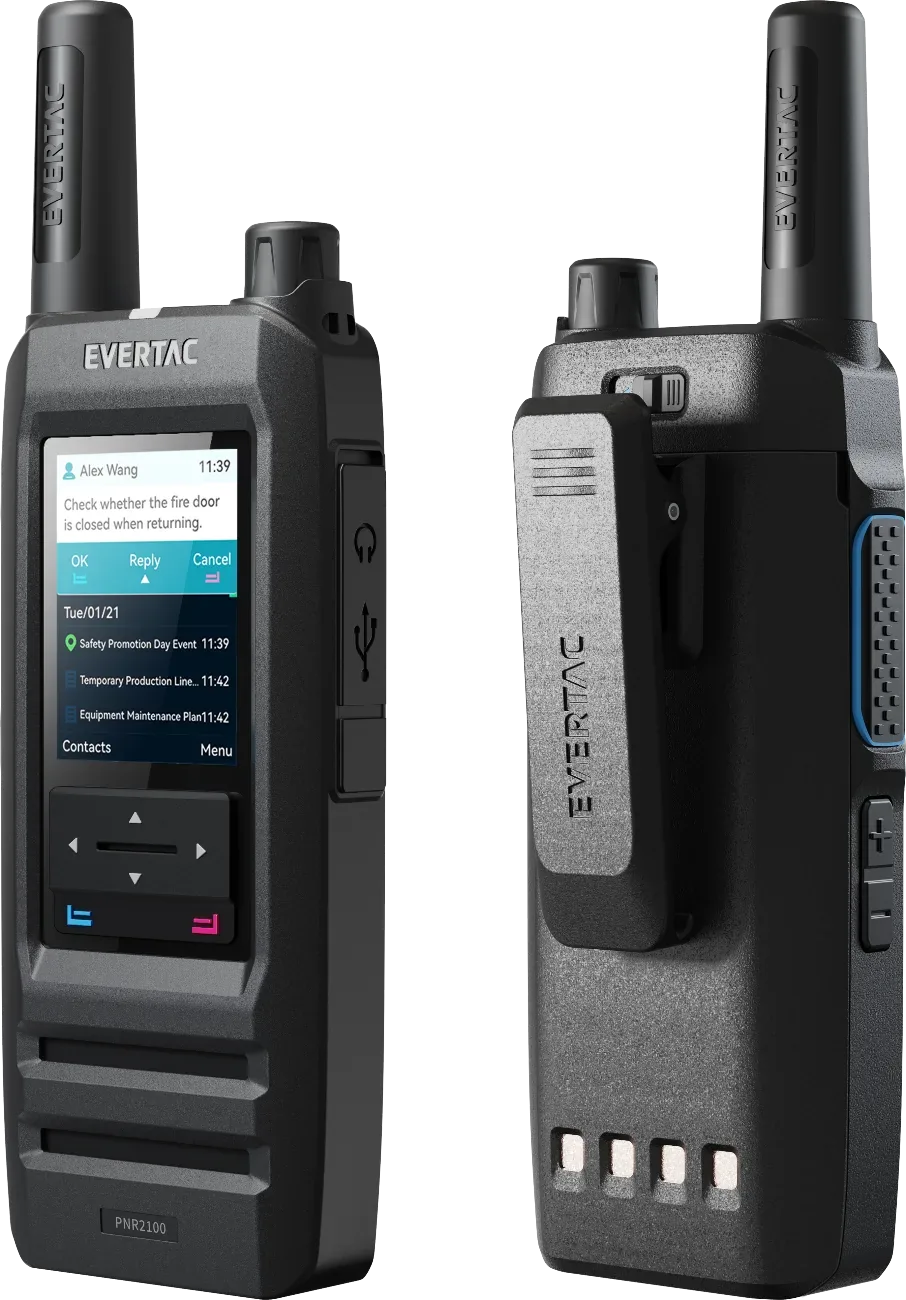

PNR2100 intelligent task radio

DMR + 4G LTE DUAL MODE

A dual-mode task terminal joining DMR private-network communication with 4G LTE public voice. Both networks stand by in parallel and switch in the background, combining task dispatch, position feedback, emergency alarm and platform integration — for sites where crews are dispersed, conditions are difficult and jobs have to close.

PNR2100 intelligent task radio
PNR2100 Features Specifications Related Request the datasheet

Product features

Dual standby on private and public networks

Both networks stand by in parallel and switch in the background, with nothing for the user to do.

Card-based task interaction

Tasks, calls and alarms on one screen, reachable on three keys with no menu to work through.

GPS and BLE positioning together

Satellite outdoors, Bluetooth indoors, with position uploaded live to the platform.

Encryption and remote control

Digitally encrypted communication, and a lost terminal can be locked and disabled remotely.

IP67 rugged body

Dust and water protected across a wide temperature range, for continuous work in harsh conditions.

Dual
DMR + 4G LTE
Private-network security and public-network reach, switching with no user action.
2.0"
HD colour screen
Readable in gloves and in low light.
3400 mAh
Removable battery
Long runtime with a hot swap on site.
IP67
Ingress protection
Fully sealed, working through rain, snow and dust.

Performance

PNR2100
Communication and positioning
Modes DMR digital + 4G LTE public voice
DMR band 400–470 MHz (UHF)
Public network bands FDD-LTE B1/3/5/8 · TDD-LTE B34/38/39/40/41
Transmit power 2 W (private network)
Positioning GPS + BLE
Bluetooth BT4.2 + BLE
Antennas Internal Bluetooth / 4G LTE · external GPS · DMR private-network antenna
Hardware and environment
Display 2.0-inch HD colour screen
Processor ASR1606 · ARM Cortex-R5 · 625 MHz
Operating system RTOS
Memory RAM 8 MB + ROM 8 MB
Battery 3400 mAh removable lithium battery
Audio Single microphone + 8 Ω / 1 W speaker (36 mm)
Interfaces Type-C · 3.5 mm headset · Nano SIM
Operating temperature -20 °C to +55 °C (storage -40 to +70 °C)
Humidity ≤95% (at 45 °C)
Ingress protection IP67
Dimensions 132 × 60 × 31 mm
Weight Approx. 219 g (with battery and antenna)
* Some auxiliary functions require the radio system and platform together; the datasheet governs the detailed figures.

Need advice on a fleet configuration?

Tell us the team size and the network conditions, and we will put together the terminals, charging and accessories as one package.

Talk to an engineer
FAQ

PNR2100 FAQ

The questions we hear most often on selection, certification and delivery.

Didn’t find your question? Ask an engineer →

The radio monitors two channels or modes at once so users do not miss calls from another team.

GPS outdoors and BLE beacons indoors, reported to NetFlex for live maps and track playback.

Work orders and patrol tasks from NetFlex shown on the radio for confirmation in the field.

Yes. Both are DMR radios and can operate on the same system.
