PROFESSIONAL DMR RADIO

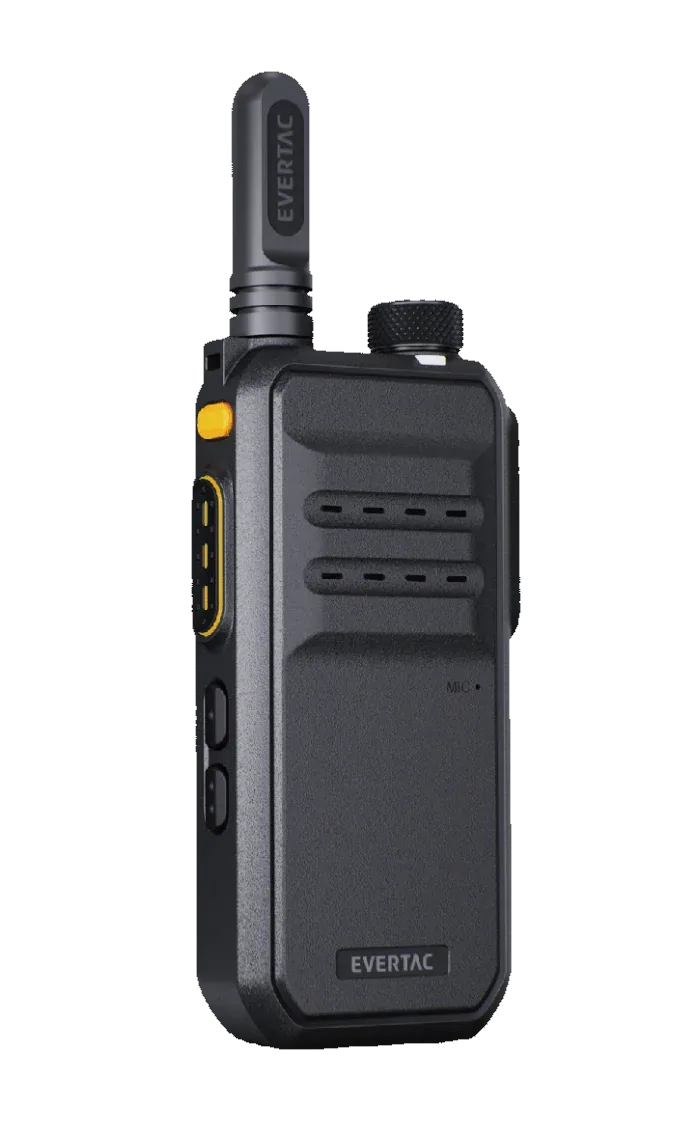

PNR2000 professional DMR radio

DIGITAL / ANALOGUE DUAL MODE

The classic handheld for stable private-network sites. Digital and analogue run side by side, so an existing analogue fleet can move to digital gradually and at low cost, while long battery life and clear audio keep a shift in contact from start to finish.

PNR2000 professional DMR radio
PNR2000 Features Specifications Related Request the datasheet

Product features

Analogue and digital in parallel

A smooth, low-cost path from an existing analogue system to digital communication.

Standard DMR with flexible calling

Individual and group working supported flexibly and efficiently.

Long runtime, easy charging

Covers a long working day, and charging is quick and straightforward.

Clear audio, practical functions

Loud, clear voice with secure communication and simple, obvious operation.

Compact body

Light and easy to hold, so an instruction gets through without a fight with the hardware.

U/V full
Full UHF and VHF coverage
Fits the licensed-band rules of most markets straight out of the box.
2 W / 0.5 W
Switchable power
Trade range against battery life as the job requires.
10–12 h
Battery runtime
Covers a standard shift, keeping the team in contact throughout.
-120 dBm
Receive sensitivity
Clear communication even at the weak edge of coverage.

Performance

PNR2000
RF and communication
Bands 137–174 / 400–470 MHz
Digital protocol ETSI TS 102 361-1, -2, -3
Channel capacity 32 channels / 2 zones
Channel spacing 12.5 kHz / 25 kHz (analogue) · 12.5 kHz (digital)
Frequency stability ±1.0 ppm
Sensitivity 0.22 µV / -120 dBm (12 dB SINAD)
Output power High 2 W ±0.5 W · low 0.5 W ±0.3 W
Adjacent channel selectivity ≥55 dB at 12.5 kHz
Spurious rejection 60 dB
Audio distortion ≤3% (typical)
Body and configuration
Battery runtime 10 hours analogue / 12 hours digital
Battery 3800 mAh · 3.7 V
Dimensions 174 × 58 × 28 mm
Antenna Whip antenna
Programming interface Type-C
Keys SOS · PTT · M1 / M2 programmable keys
Headset Wired headset supported
Status indication Two-colour indicator
Remote monitoring Local or cloud platform · call, voice and device information
Standard accessories Antenna, wrist strap, belt clip, battery, travel charger
* The datasheet governs the detailed figures.

Need advice on a fleet configuration?

Tell us the team size and the network conditions, and we will put together the terminals, charging and accessories as one package.

Talk to an engineer
FAQ

PNR2000 FAQ

The questions we hear most often on selection, certification and delivery.

Didn’t find your question? Ask an engineer →

Yes. It supports analog and digital DMR modes for gradual migration from analog systems.

UHF and VHF band options.

Yes. Both operate on the same DMR system and talk groups.

Batteries, chargers including the CMP2600, earpieces and holsters.
